DIAMOND Flood Light
DIAMOND I Flood Light
Featiure
Heat sink: Die-casting technology with ADC12, excellent thermal management and decrease the lumens depreciation
Integrated breather valve, balance internal & external temperature and humidity
Streamline design improves the industrial look & optimize the cost structure 40
4mm tempered glass provide high impact resistance IK08, lighting distribution 120°
Top brand LED chip and high efficiency driver, ensure the product quality and lifetime
304 stainless steel screws, galvanized bracket with corrosion resistance treatment
Luminous efficacy up to 120lm/W, lifetime:50000H
Ingress protection rating: IP66
Operation temperature: -20°C ~ + 50℃
Applications
Square, Garden,Green Landscape, Underground Parking Lot, Warehouse, Workshop etc.
Instalation Method

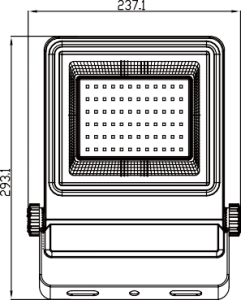

Product Size
Photometry
Technical Datesheet
Model No. | PC-XTGD-010A | PC-XTGD-020A | PC-XTGD-030A | PC-XTGD-050A | PC-XTGD-0100A | PC-XTGD-0150A | PC-XTGD-0200A |
Rated Power | 10W | 20W | 30W | 50W | 100W | 150W | 200W |
Input Voltage | AC100-277V | ||||||
Chip | OSRAM | ||||||
CRI | Ra>80 | ||||||
Power Factor | >0.95 | ||||||
Luminous Efficacy | 120lm/W | ||||||
IP Rating | IP66 | ||||||
Operation Temp. | -20°~+50°C | ||||||
Beam Angle | 120° | ||||||
Warranty | 3years / 5 years | ||||||
Dimension(mm) | 129*99*44 | 175*135*44 | 215*175*47 | 275*225*48 | 325*275*53 | 385*305*58 | 465*354*65 |
Certificate | CCC / CQC/TUV / CB / FCC / SAA / CE / RoHS | ||||||
DIAMOND I Flood RGB Model
Featiure
Heat sink: Die-casting technology with ADC12, excellent thermal management and decrease the lumens depreciation
Integrated copper breather valve, balance internal & external temperature and humidity
Streamline design improves the industrial look & optimize the cost structure
Radio Frequency Control, 7-10 meters distance
Top brand LED chip and high efficiency driver, ensure the product quality and lifetime
304 stainless steel screws, galvanized bracket with corrosion resistance treatment
Operation Temperature: -20°C ~ +50℃
Ingress protection rating: IP66
Technical Datasheet
Model No. | PC-XTGD-030C | PC-XTGD-050C | PC-XTGD-0100C | PC-XTGD-0150C | PC-XTGD-0200C |
Rated Power | 30W | 50W | 100W | 150W | 200W |
Input Voltage | AC100～277V | ||||
Chip | Bridgelux | ||||
CRI | / | ||||
Power Factor | >0.93 | ||||
Luminous Efficacy | / | ||||
IP Rating | IP66 | ||||
Operation Temp. | -20°~+50°C | ||||
Beam Angle | 120° | ||||
Warranty | 3 years | ||||
Dimension(mm) | 129*99*44 | 175*135*44 | 215*175*47 | 275*225*48 | 325*275*53 |
DIAMOND I Flood RGB Model
Featiure
- Heat sink: Die-casting technology with ADC12, excellent thermal management and decrease the lumens depreciation
-
Integrated copper breather valve, balance internal & external temperature and humidity
Streamline design improves the industrial look & optimize the cost structure
- Top brand LED chip and high efficiency driver, ensure the product quality and lifetime
-
Luminous Efficacy up to 130lm/W, lifetime:50000H
-
Multiple lighting distributions: 15°/30°/60°/90°/150*70°/150*150°/Asymmetrical 50°
-
304 stainless steel screws, galvanized bracket with corrosion resistance treatment
-
Optical polycarbonate lenses provide high impact resistance IK08
-
Ingress Protection Rating: IP66
Technical Datasheet
Model No. | PC-XTGD-030G | PC-XTGD-050G | PC-XTGD-0100G | PC-XTGD-0150G | PC-XTGD-0200G | ||
Rated Power | 30W | 50W | 100W | 150W | 200W | ||
Input Voltage | AC100～277V | ||||||
Chip | Bridgelux | ||||||
CRI | Ra>70 | ||||||
Power Factor | >0.93 | ||||||
Luminous Efficacy | 120-130lm/W | ||||||
IP Rating | IP66 | ||||||
Operation Temperature | -20°~+50°C | ||||||
Beam Angle | 15°/30°/60°/90°/150°*70°/150°*150°/Asymmetrical 50° | ||||||
Warranty | 3 years / 5 years | ||||||
Dimension(mm) | 215*175*47 | 275*225*48 | 325*275*53 | 385*305*58 | 465*354*65 | ||
DIAMOND I Flood Narrow A Model
Featiure
Die-casting technology with ADC12, thermal conductivity 96W, excellent thermal management and decrease the lumens depreciation
Integrated copper breather valve, balance internal & external temperature & humidity
Streamline design improves the industrial look & optimize the cost structure
Optical polycarbonate lenses provide high impact resistance IK08, multiple lighting distribution:10°/25°/45°/60°
Top brand LED chip and isolation high efficiency waterproof driver, wide voltage output, ensure the product quality and lifetime
304 stainless steel screws, galvanized bracket with corrosion resistant treatment that suitable for coastal areas.
Luminous Efficacy up to 100lm/W, lifetime 50000H.
Ingress Protection Rating: IP66 Operation
Temperature: -20℃ ~ +50℃
Applications
Square, Garden,Green Landscape, Underground Parking Lot, Warehouse, Workshop etc.，
Instalation Method
Product Size
Photometry
Technical Datesheet
Model No. | PC-XTGD-10W | PC-XTGD-20W | PC-XTGD-30W | PC-XTGD-50W | PC-XTGD-100W | PC-XTGD-150W | PC-XTGD-200W | ||
Rated Power | 10W | 20W | 30W | 50W | 100W | 150W | 200W | ||
Input Voltage | AC100～277V | ||||||||
Chip | Bridgelux | ||||||||
CRI | Ra>70 | ||||||||
Power Factor | >0.95 | ||||||||
Luminous Efficacy | 100lm/w | ||||||||
IP Rating | IP66 | ||||||||
Operation Temp. | -20°～+50°C | ||||||||
Beam Angle | 10°/25°/45°/60° | ||||||||
Warranty | 3 years / 5 years | ||||||||
Dimension(mm) | 129*99*44 | 175*135*44 | 215*175*47 | 275*225*48 | 325*275*53 | 385*305*58 | 465*354*65 | ||
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | ||||||||
DIAMOND II Flood Light
Featiure
Die-casting technology with ADC12, thermal conductivity 96W, excellent thermal management and decrease the lumens depreciation
Integrated copper breather value, balance internal & external temperature & humidity
Streamline design improves the industrial look & optimize the cost structure
4mm tempered glass provide high impact resistance IK08, lighting distribution:120°
Top brand LED chip and high efficiency driver; ensure the product quality and lifetime
304 stainless steel screws, galvanized bracket with corrosion resistant treatment that suitable for coastal areas
Luminous Efficacy up to 150lm/W, lifetime 50000H.
Ingress Protection Rating: IP66
Operation Temperature: -20°C ~ +50℃
Applications
Square, Garden,Green Landscape, Underground Parking Lot, Warehouse, Workshop etc.，
Instalation Method

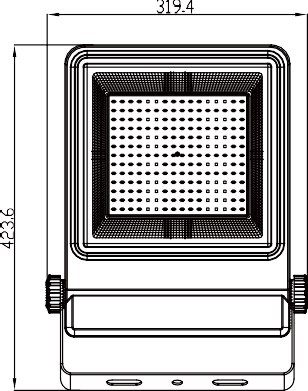

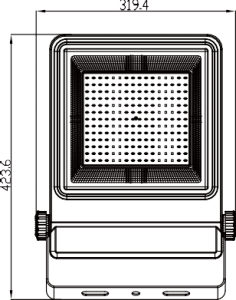

Product Size
Technical Datesheet
Model No. | PC-TGD-B10W | PC-TGD-B20W | PC-TGD-B30W | PC-TGD-B50W | PC-TGD-B100W | PC-TGD-B150W | PC-TGD-B200W | PC-TGD-B250W/B300W |
Rated Power | 10W | 20W | 30W | 50W | 100W | 150W | 200W | 250W/300W |
Input Voltage | AC100～277V | |||||||
Chip | OSRAM | |||||||
CRI | Ra>80 | |||||||
Power Factor | >0.95 | |||||||
Luminous Efficacy | 150lm/w | |||||||
IP Rating | IP66 | |||||||
Operation Temp. | -20°～+50°C | |||||||
Beam Angle | 120° | |||||||
Warranty | 3 years / 5 years | |||||||
Dimension(mm) | 127*127*44 | 148*148*44 | 201*193*46 | 247*237*47 | 301*280*55 | 358*320*61 | 412*366*63 | 486*406*69 |
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | |||||||
DIAMOND II Flood Light PIR Model
Featiure
PIR sensor, detection distance up to 12m
4mm tempered glass provide high impact resistance IK06, lighting distribution:120°
Top brand LED chip and high efficiency driver; ensure the product quality and lifetime.
304 stainless steel screws, galvanized bracket with corrosion resistant treatment that suitable for coastal area
Application
Underground parking lot, park walkway, factory, warehouse etc.
Technical Datasheet
Model No. | PC-TGD-B10W | PC-TGD-B20W | PC-TGD-B30W | PC-TGD-B50W | PC-TGD-B100W | ||
Rated Power | 10W | 20W | 30W | 50W | 100W | ||
Input Voltage | AC100～277V | ||||||
Chip | OSRAM | ||||||
CRI | Ra>80 | ||||||
Power Factor | >0.95 | ||||||
Luminous Efficacy | 功率 120lm/w | ||||||
IP Rating | IP66 | ||||||
Operation Temperature | -20°～+50°C | ||||||
Beam Angle | 120° | ||||||
Warranty | 3 years | ||||||
Dimension(mm) | 127*127*44 | 148*148*44 | 201*193*46 | 247*237*47 | 301*280*55 | ||
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | ||||||
DIAMOND II Flood Narrow A Model
Featiure
Die-casting technology, AL purity is 92% with ADC12, thermal conductivity 96W, excellent thermal management and decrease the lumens depreciation
Optical polycarbonate lenses provide high impact resistance IK08, multiple lighting distribution:10°/25°/45°/60°
Top brand LED chip & driver; ensure the product quality and lifetime.
304 stainless steel screws, galvanized bracket with corrosion resistant treatment that suitable for coastal areas
Ingress protection rating: IP66
Technical Datasheet
Model No. | PC-TGD-BA10W | PC-TGD-BA20W | PC-TGD-BA30W | PC-TGD-BA50W | PC-TGD-BA72W | PC-TGD-BA120W | PC-XTGD-BA150W | PC-XTGD-BA200W |
Rated Power | 10W | 20W | 30W | 50W | 72W | 120W | 150W | 200W |
Input Voltage | AC100～277V | |||||||
Chip | Bridgelux | |||||||
CRI | Ra>70 | |||||||
Power Factor | >0.95 | |||||||
Luminous Efficacy | 100lm/w | |||||||
IP Rating | IP66 | |||||||
Operation Temp. | -20°～+50°C | |||||||
Beam Angle | 10°/25°/45°/60° | |||||||
Warranty | 3 years / 5 years | |||||||
Dimension(mm) | 127*127*44 | 148*148*44 | 201*193*46 | 247*237*47 | 301*280*55 | 358*320*61 | 412*366*63 | 486*406*69 |
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | |||||||
DIAMOND II Flood Light
Featiure
Die-casting technology, AL purity is 92% with ADC12, thermal conductivity 96W, excellent thermal management and decrease the lumens depreciation
Integrated copper breather value, balance internal & external temperature and humidity
Streamline design improves the industrial look & optimize the cost structure
Top brand LED chip and driver, ensures the product quality and lifetime
Luminous efficacy up to 150lm/W, lifetime 50,000H
304 stainless steel screws, galvanized bracket with corrosion resistant treatment that suitable for coastal areas
Optical polycarbonate Lenses provide high impact resistance IK08, multiple lighting distribution:15°/30°/60°/90°/ 150°*70°/150°*150°/Asymmetrical 50°
Operation Temperature: -20℃ ~ +50℃
Ingress protection rating: IP66
Applications
Square, Garden, reen Landscape, Underground Parking Lot, Warehouse, Workshop etc.，
Instalation Method
Photometry
Technical Datesheet
Model No. | PC-TGD-BB30W | PC-TGD-BB50W | PC-TGD-BB100W | PC-TGD-BB150W | PC-TGD-BB200W | PC-TGD-BB250W | PC-TGD-BB300W |
Rated Power | 30W | 50W | 100W | 150W | 200W | 250W | 300W |
Input Voltage | AC100～277V | ||||||
Chip | OSRAM | ||||||
CRI | Ra>80 | ||||||
Power Factor | >0.95 | ||||||
Luminous Efficacy | 150lm/w | ||||||
IP Rating | IP66 | ||||||
Operation Temp. | -20°～+50°C | ||||||
Beam Angle | 15°/30°/60°/90°/150°*70°/150°*150°/Asymmetrical 50° | ||||||
Warranty | 3 years / 5 years | ||||||
Dimension(mm) | 201*193*46 | 247*237*47 | 301*280*55 | 358*320*61 | 412*366*63 | 486*406*69 | 486*406*69 |
Certificate | CQC / TUV / CB / FCC / SAA / CE / RoHS | ||||||
