LEGEND LED Street Light
LEGEND II LED Street Light
Featiure
Die-casting aluminum housing with smooth back cover design, no dust and water will stay on the housing
Waterproof breather valve: balances the internal & external temperature & humidity
Optical lens with tempered glass cover, high anti-corrosion and UV for costal area
Post top or entry:-20°~+20°title
Opening by two clips, tool-less design
Luminous efficacy up to 150lm/watt, life time 60,000H Ingress
protection rating: IP66
Applications

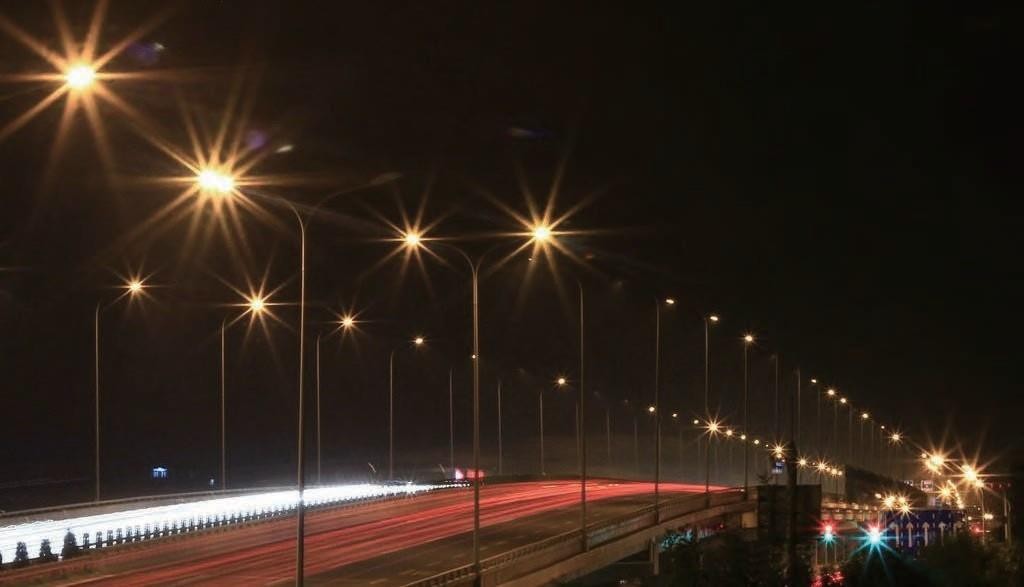

Roads, highways, viaducts, city street, overpasses, outdoor places: such as squares, school, residential areas and parks
Product Size
Installation Method
Technical Datesheet
Model No. | PC-LDB-30W/50W/60W | PC-LDB-80W/100W/120W | PC-LDB-150W/180W | PC-XLB-200W/240W |
Rated Power | 30W/50W/60W | 80W/100W/120W | 150W/180W | 200W/240W |
Input Voltage | AC100～277V | |||
Chip | OSRAM/LUMILEDS | |||
CRI | Ra>80 | |||
Power Factor | >0.95 | |||
Luminous Efficacy | 140-150lm/W | |||
IP Rating | IP65 | |||
Operation Temp. | -35～+50℃ | |||
Beam Angle | Type II / Type III | |||
Warranty | 5 years | |||
Dimension(mm) | 424*208*94 | 519*297*111 | 610*297*111 | 700*297*111 |
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | |||
